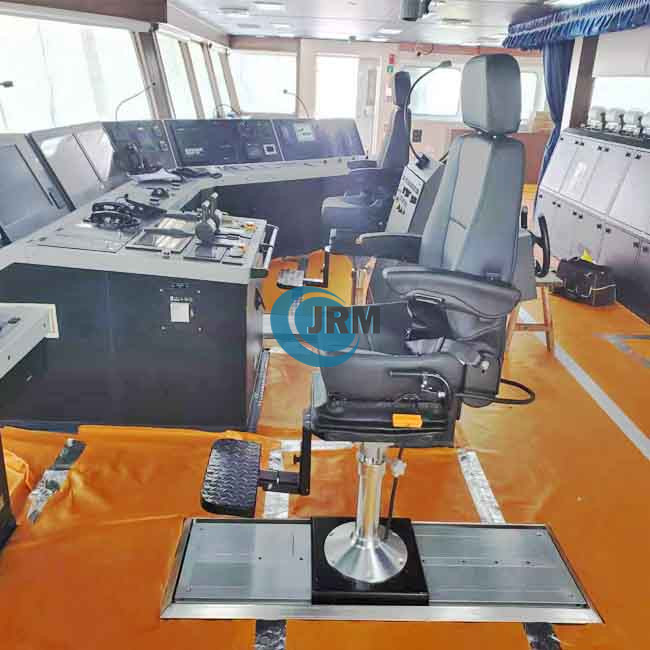

Marine pilot seat driver chair TR002

Advantages of Marine pilot seat driver chair TR002

1.Ergonomic design;
2.Adjustable backrest and headrest;
3.Seat height may be angle adjusted;
4.Seats can be moved back and forth;
5.Folding / angle-adjustable comfortable seat
armrest;
6.Seat can rotated 360 degrees, multi-point
positioning;
7.Foot pedal height adjustable / folding;
8.Column can be vertically lifting;

Material of Marine pilot seat driver chair TR002 ：
1.Lifting column with Aluminum alloy and stainless steel
synthesis;
2.The seat lifting and tilting, move back and forth, back angle
adjusting are used in steel structure;
3. The seat back and the seat cushion adopts the steel inner core
and PU cold foam forming disposable sponge synthesis,
outsourcing leather or cloth;
4. Steel structure for the footrest;
5. Pneumatic lifting core components pneumatic bar the use of
German imports of Stabilus;

Function data of Marine pilot seat driver chair TR002：
1.Upper part of the seat can be moved back and forth
of120mm,height adjustment 60mm, seat inclination angle range
of ± 12 ° ;
2. Seat backrest with adjustable angle of 85 ° -150 ° , the
headrest adjusted up and down 50mm, handrest multi-point
positioning control;
3. The seat of pneumatic lifting regulating range 0-150mm ；
4. The seat can rotate 360 ° and locked ,4-point positioning
control;
5. Seat pedal can rotate 90 ° and regression;
6.Seat can bear more than 150FT.LB torsion, reached AD grade
standard;
